Custom Resources Setup

This guide walks you through setting up Custom Resources in Torque, from defining resource types to creating resource instances that can be reserved by blueprints.

Prerequisites​

  • Administrator access to Torque
  • Understanding of your infrastructure resource requirements
  • Basic knowledge of YAML syntax for blueprint integration

Define Resource Types​

Before creating resource instances, you need to define the resource types that will be available in your inventory.

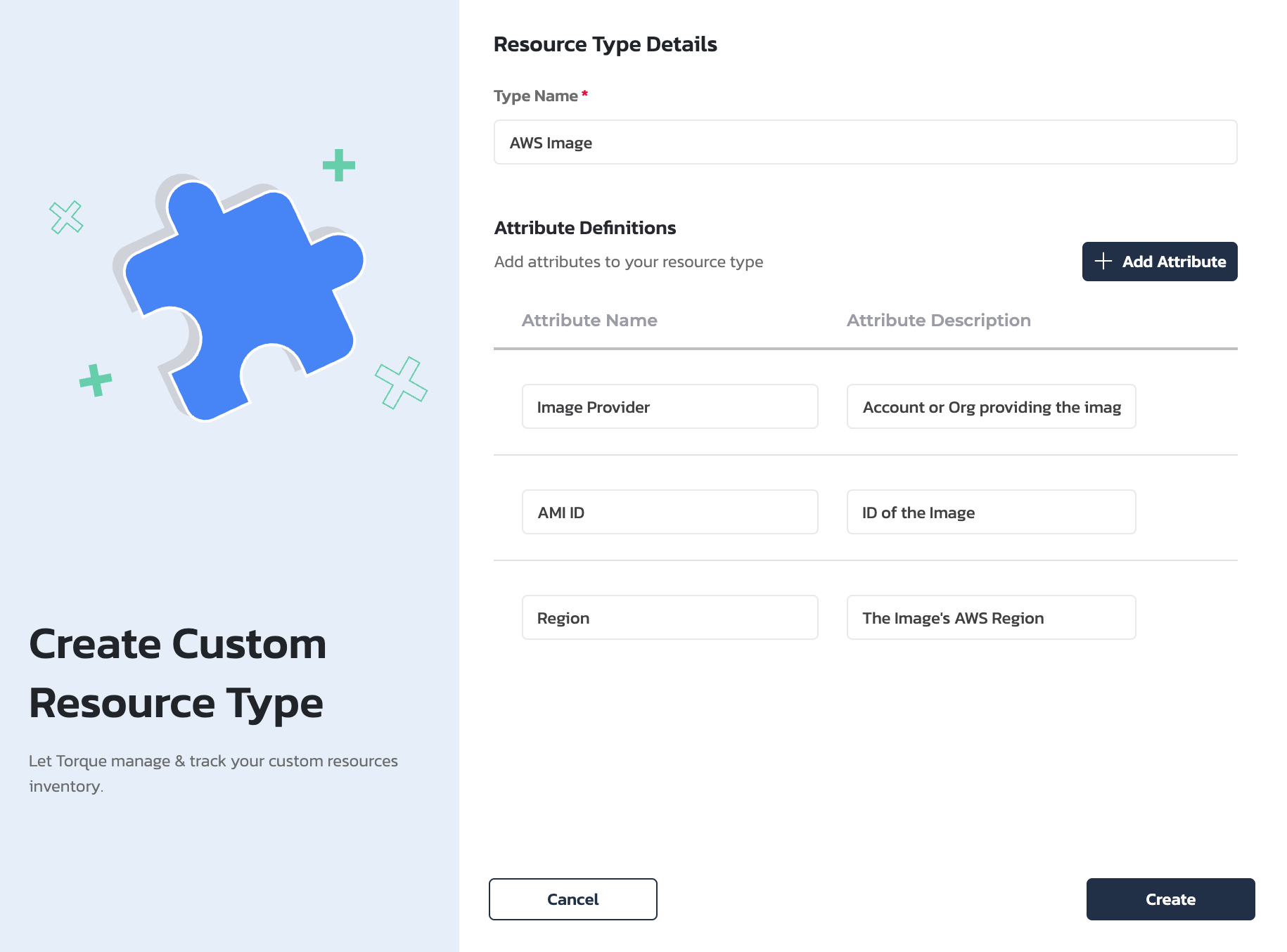

Creating a Resource Type​

  1. Navigate to the Admin section in Torque
  2. Go to Custom Resources > Resource Types
  3. Click Create Resource Type
  4. Fill in the resource type details:

Basic Information:

  • Name: Unique identifier for the resource type (e.g., "Ignite_Pod", "Test_Server", "Database_Instance")
  • Description: Brief description of what this resource type represents
  • Category: Logical grouping (e.g., "Compute", "Storage", "Network")

Attributes: Define the attributes that resources of this type will have:

  • Attribute Name: The key identifier (e.g., "cpu_cores", "memory_gb", "location")
  • Attribute Type: Data type (string, number, boolean)
  • Required: Whether this attribute must be specified for all resource instances
  • Description: What this attribute represents

Example Resource Type Configuration​

Create Resource Instances​

After defining resource types, create concrete instances that can be reserved by environments.

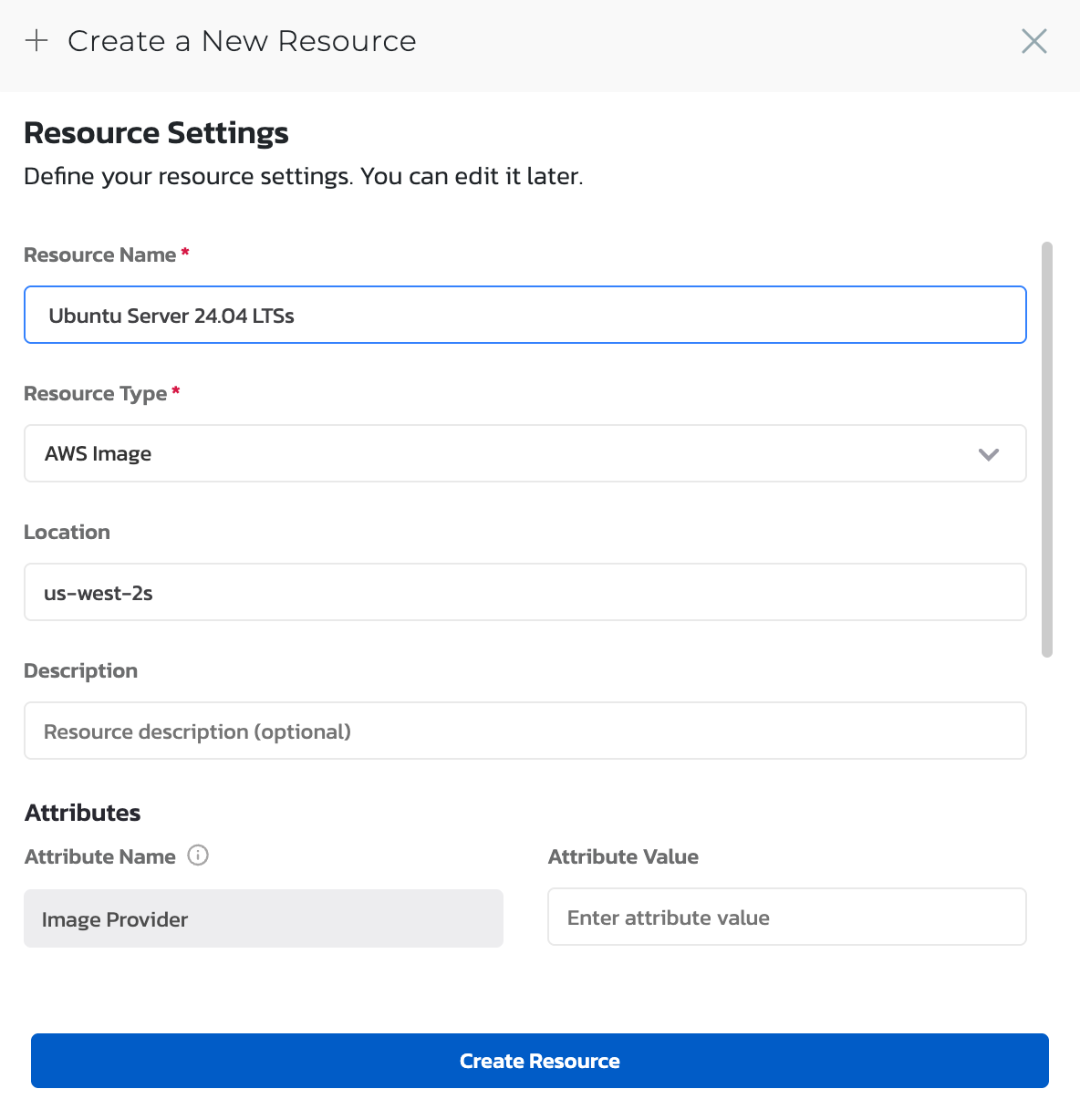

Adding Resource Instances​

  1. Go to Custom Resources > Resource Inventory
  2. Click Add Resource
  3. Select the Resource Type from the dropdown
  4. Fill in the resource details:

Basic Information:

  • Resource ID: Unique identifier for this specific resource
  • Name: Human-readable name
  • Status: Available, Reserved, Maintenance, etc.

Attribute Values: Provide values for all required attributes defined in the resource type.

Example Resource Instance​

Blueprint Integration​

Once resources are set up, they can be used in blueprints.

Basic Blueprint Configuration​

Add a resources section to your blueprint YAML:

spec_version: 2
description: Blueprint with custom resource reservation

resources:
  image:
    selector:
      quantity: 2
      type: 'AWS Image'
      attributes:
        - location: 'us-west-2'

Resource Access in Grains​

Access reserved resource data in your grains:

grains:
  deploy:
    kind: shell
    spec:
      activities:
        deploy:
          commands:
            - "echo Reserved resources: {{ .resources.image }}"

Validate Resource Setup​

  1. Check Resource Availability: Ensure resource instances are marked as "Available"
  2. Test Blueprint Validation: Validate blueprints that use custom resources

Test Resource Reservation​

  1. Create a test blueprint with resource requirements
  2. Launch an environment using the blueprint
  3. Verify resources are properly reserved
  4. Check that resource data is accessible in grains

Configuration Best Practices​

Resource Type Design​

  • Consistent Naming: Use clear, consistent naming conventions
  • Meaningful Attributes: Include attributes that are actually needed by blueprints
  • Logical Grouping: Organize resource types into logical categories

Resource Instance Management​

  • Adequate Inventory: Maintain sufficient resource instances for demand
  • Regular Maintenance: Keep resource status updated
  • Monitoring: Track resource utilization and availability

Blueprint Integration​

  • Input Validation: Use appropriate input types for resource selection
  • Error Handling: Include proper error handling for resource access
  • Documentation: Document resource requirements clearly

Troubleshooting​

Common Issues​

Resource Type Not Found

  • Verify the resource type name matches exactly
  • Check that the resource type is enabled for the space
  • Ensure proper permissions are configured

Resource Reservation Failed

  • Check that sufficient resources are available
  • Verify resource status is "Available"
  • Review quantity requirements vs. available instances

Resource Data Not Accessible

  • Confirm resource reservation was successful
  • Check liquid expression syntax
  • Verify attribute names match resource type definition

Monitoring Resource Usage​

  1. Resource Dashboard: Monitor resource utilization and availability
  2. Reservation History: Track which environments reserved which resources
  3. Capacity Planning: Analyze usage patterns for capacity planning
